Product: BOLD MX1 BATTER MIXER DIAGRAM AND PARTS LIST
BOLD MX1 BATTER MIXER DIAGRAM AND PARTS LIST
Contact for Price
Description

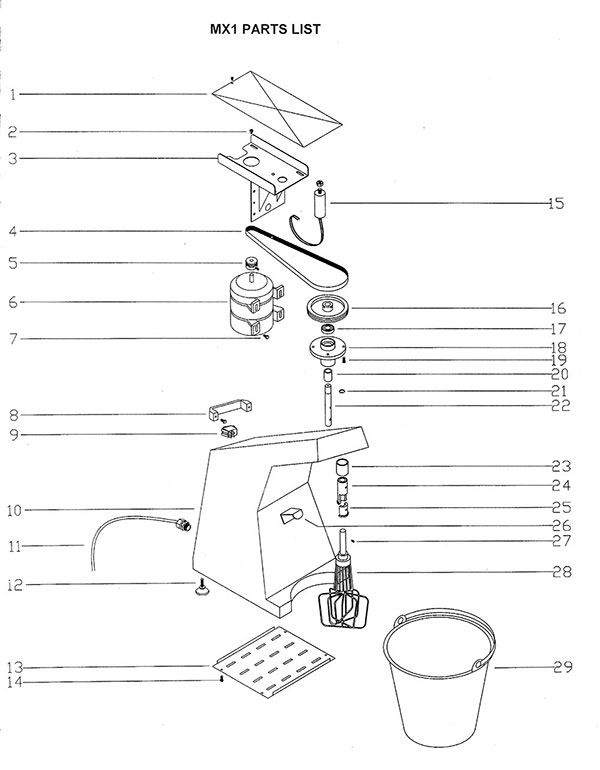

Bold MX1 Parts List
| No | Description | |
| 1 | Bold MX1 | Top cover |
| 2 | Bold MX1 | Motor plate location screws x4 |
| 3 | Bold MX1 | Motor plate |
| 4 | Bold MX1 | Drive belt |
| 5 | Bold MX1 | Motor pulley |
| 6 | Bold MX1 | Motor |
| 7 | Bold MX1 | Motor location screws |
| 8 | Bold MX1 | Handle (including screws) |
| 9 | Bold MX1 | Switch on/off |
| 10 | Bold MX1 | Main case |
| 11 | Bold MX1 | Cable |
| 12 | Bold MX1 | 4 adjustable Feet |
| 13 | Bold MX1 | Base cover |
| 14 | Bold MX1 | Base panel screws |
| 15 | Bold MX1 | Capacitor |
| 16 | Bold MX1 | Main pulley |
| 17 | Bold MX1 | Bearing |
| 18 | Bold MX1 | Bearing housing |
| 19 | Bold MX1 | Bearing housing location bolts |
| 20 | Bold MX1 | Oilite bearing |
| 21 | Bold MX1 | Circlip |
| 22 | Bold MX1 | Drive shaft |
| 23 | Bold MX1 | Assembly locking ring |
| 24 | Bold MX1 | Shaft location clamp |
| 25 | Bold MX1 | Whisk location clamp |
| 26 | Bold MX1 | Bucket holder |
| 27 | Bold MX1 | Whisk location clamp screw |
| 28 | Bold MX1 | Whisk |
| 29 | Bold MX1 | Bucket |
