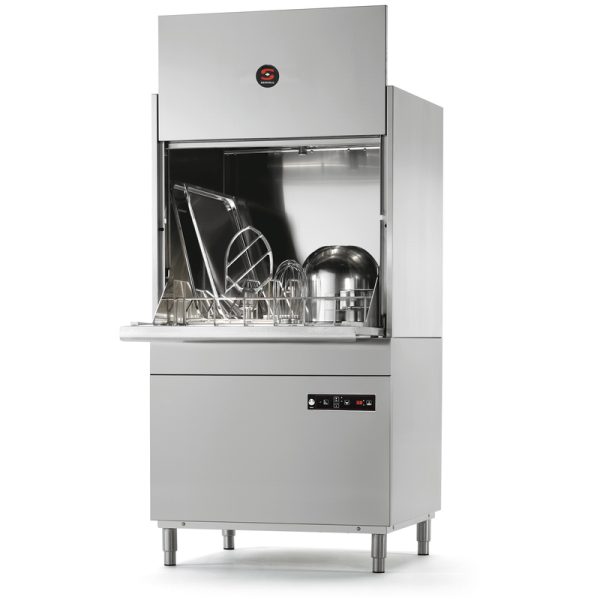

Description

• Booster pump included.
• Features rinsing boiler.
• Drain pump and non-return valve available on model LU-75B.
• Manufactured from stainless steel.
• Front door divided into two parts, making loading and unloading easier.
• Double skinned unit to reduce noise and hold constant temperature.
• Wash tanks with smooth or no corners to eliminate dirt buildup on the machine.
• Stamped wash disperses in stainless steel tubes.
• Easy to remove wash and rinse disperses.
• Safety micro switch at the door and electronic safety device to guarantee washing temperature and time.
• Electronic control panel with LED display, east view of wash and rinse temperature.
• Thermal Cycle delay option, to enable a minimum rinse temperature of 85ºC a the beginning of the cycle.
• 3 cycles, from 120s, 240s, 360s.
• 1 stainless steel basket and insert for 4 trays included.
• Basket dimensions of 780 X 700 mm.
• Up to 30 washers per hours.
• Maximum loading height of 650mm.
• Noise level 76dB(A).
• Total loading: 12900 W.
• Temperature: 10 ºC – 60 ºC.
• Wash temperature: 40 ºC – 70 ºC, Rinse temperature: 70 ºC – 95 ºC.
• Wash tank capacity: 80 L, Boiler capacity: 12 L.
• Drainage base maximum height: 185 mm.
•W922 x D932 X H1840 MM

12.9kW
450V, 56A, 50Hz
suitable for 32 amp three phase supply.
REQUIRES HARDWIRING

1 YEAR PARTS & LABOUR WARRANTY
