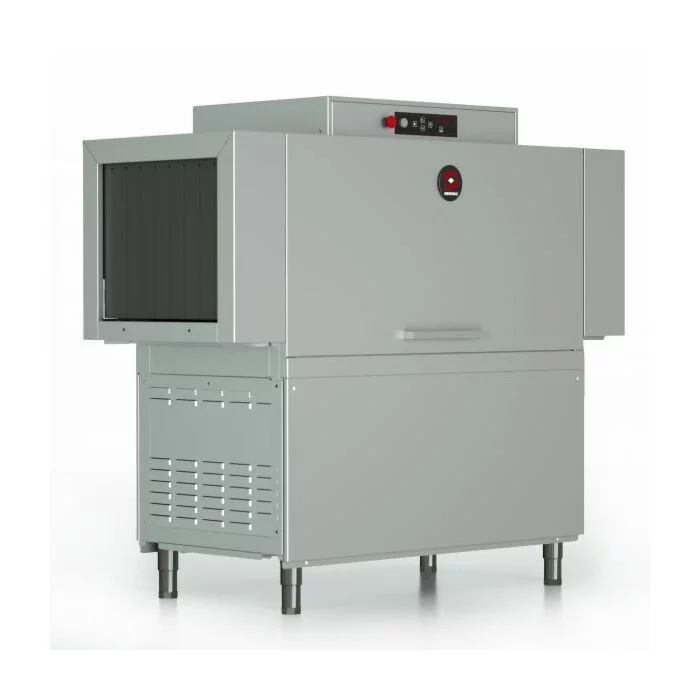

Description

• Fully stainless steel jacket.
• Inlet and outlet splash guards are standard.
• Stainless steel central rack feed system.
• Process cycles are divided by rubber curtains.
• Automatic cycle start.

Economy:
• Energy saving rinse supply switch.
• Pressure controller in the rinse section to limit consumption.
• Programmed automatic stops if there is no loading.
• Stop and freezing of timer when the limit switch actuates.

Cleaning & Maintenance:
• Wide pivoting door allowing access for cleaning or inspection purpose.
• Detachable arms and dispersers for easier cleaning.
• Sloped removable stainless steel filters with independent removable basket.
• Easy boiler emptying by loosening a hose.
• Failures are easily detected thanks to the warning lights.
• Easy to repair without moving the machine.

Washing:
• Stainless steel wash arms and deep-drawn dispersers.
• Efficient and durable wash arm dispersers.
• Powerful, self-draining vertical wash pump.
• Easy to install detergent dispenser intake in washing tank. Rinsing

Rinsing:
• Stainless steel rinse arms and powerful, stainless steel, deep-drawn dispersers.
• Automatic boiler filling with no failure risk for heating elements.
• Temperature control with high precision probes.
• Visualisation and adjustment of washing and rinsing temperatures in the digital display by pressing a button.
• Easy to install rinse aid dispenser intake in boiler

Specifications:
• Production baskets/hour: 100/150.
• Production plates/hour: 1800/2700.
• Wash Temperature: 55°C/65°C.
• Wash tank capacity: 100ltr.
• Pump: 3.2 Hp / 2400W.
• [s:1av_resist]: 9000W.
• Rinse Temperature: 80°C/90°C.
• Water consumption: 330 l/h.
• Rinse heating element: 18000W.
• Drag motor power: 0.25 Hp / 135W.
• Central module total power : 29535W.
• W1700 x D829 x H1520 mm.

29.535kW
400V, 128A, 50Hz
suitable for three phase supply.
REQUIRES HARDWIRING

1 YEAR PARTS & LABOUR WARRANTY
